hermal Peregrine Falcon 一 3 Thermal【Civilian use of medium and high-end unmanned aerial vehicles】

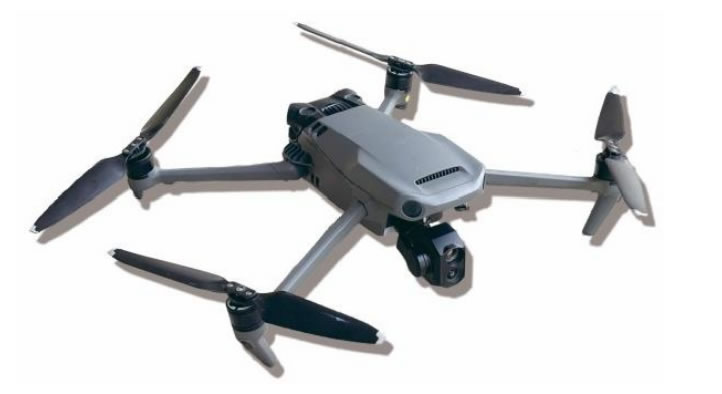

The Feisun -3T series is crafted from high -strength lightweight materials.After folding,it is compact and portable,easily fitting into a backpack,enabling  "ready-to-fly"at any time.Its mechanical  shutter wide-angle camera has a wide  shooting  range.Paired with a high -precision RTK module,it enables efficient and accurate surveying and mapping.The thermal imaging function can penetrate thick smoke and darkness.Combined with intelligent AI recognition,it can automatically lock onto ab-

normal heat sources.It is suitable for scenarios such as inspections,firefighting,search and rescue,and nighttime operations.



裸机重量  Bare weight

915g

最长飞行时间  Max flight time

39min/55min

最大起飞重量

Max take -off weight

1915g

最长悬停时间 Max hover time

33min/46min

折叠尺寸  Folded size

221×96.3×90.3mm

最大倾斜角度  Max tilt angle

30°/35°

展开尺寸

Unfolded size

347×283×107.7mm

最大旋转角速度

Max rotation angular velocity

200°/s

轴距

Axle distance

380mm

传感器(广角)

Wide-angle sensor

1/2.8,829万

最大上升速度

Max ascent speed

6m/s

镜头(广角)

Wide-angle lens

63°

最大下降速度

Max descent speed

6m/s

像元间距(热成像)

Pixel pitch (thermal imaging)

12um

最大平飞速度

Max level -flight speed

15m/s

帧率(热成像)

Frame rate (thermal imaging)

30Hz

最大抗风速度

Max wind-resistant speed

12m/s

镜头(热成像)

Lens (thermal imaging)

21°

最大起飞海拔

Max take-off altitude

6000m

图传距离

Image transmission distance

10km

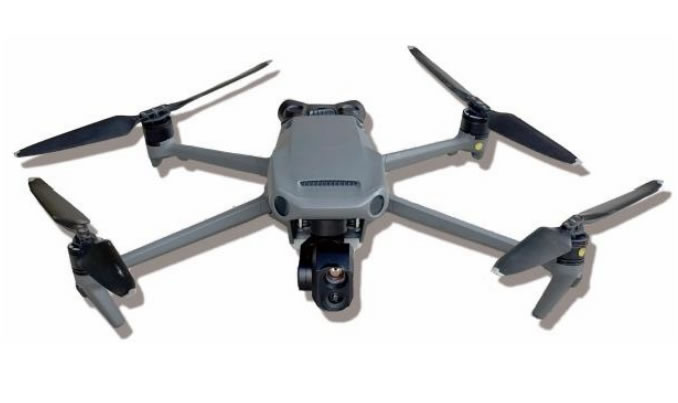

The Falcon - 3T-A series is crafted from high-strength lightweight materials. When folded, it is compact and portable, and can be easily loaded into a backpack, enabling "take and fly" at any time. Its mechanical shutter wide-angle camera has a wide shooting range and is equipped with a high-precision RTK module, making mapping efficient and accurate. The thermal imaging function can penetrate thick smoke and dark nights, and in combination with intelligent AI recognition, it can automatically lock onto abnormal heat sources. It is applicable to scenarios such as inspection, fire fighting, search and rescue, and night operations.



The Falcon - 3T-B series is made of high-strength lightweight materials. It is small and portable when folded and can be easily loaded into a backpack, enabling "take and fly" at any time. Its mechanical shutter wide-angle camera has a wide shooting range and is equipped with a high-precision RTK module, making mapping efficient and accurate. The thermal imaging function can penetrate thick smoke and dark nights, and in combination with intelligent AI recognition, it can automatically lock onto abnormal heat sources. It is applicable to scenarios such as inspection, fire fighting, search and rescue, and night operations.


裸机重量  Bare weight

915g

最长飞行时间  Max flight time

39min/55min

最大起飞重量

Max take -off weight

1915g

最长悬停时间 Max hover time

33min/46min

折叠尺寸  Folded size

221×96.3×90.3mm

最大倾斜角度  Max tilt angle

30°/35°

展开尺寸

Unfolded size

347×283×107.7mm

最大旋转角速度

Max rotation angular velocity

200°/s

轴距

Axle distance

380mm

传感器(广角)

Wide-angle sensor

1/2.8,829万

最大上升速度

Max ascent speed

6m/s

镜头(广角)

Wide-angle lens

63°

最大下降速度

Max descent speed

6m/s

像元间距(热成像)

Pixel pitch (thermal imaging)

12um

最大平飞速度

Max level -flight speed

15m/s

分辨率(热成像)

Resolution (thermal imaging)

640×512

最大抗风速度

Max wind-resistant speed

12m/s

镜头(热成像)

Lens (thermal imaging)

21°

最大起飞海拔

Max take-off altitude

6000m

图传距离

Image transmission distance

10km
